Rlaarlo X12S / Jiusu BX12 Parts and FPV Mount

by Michael Talbot

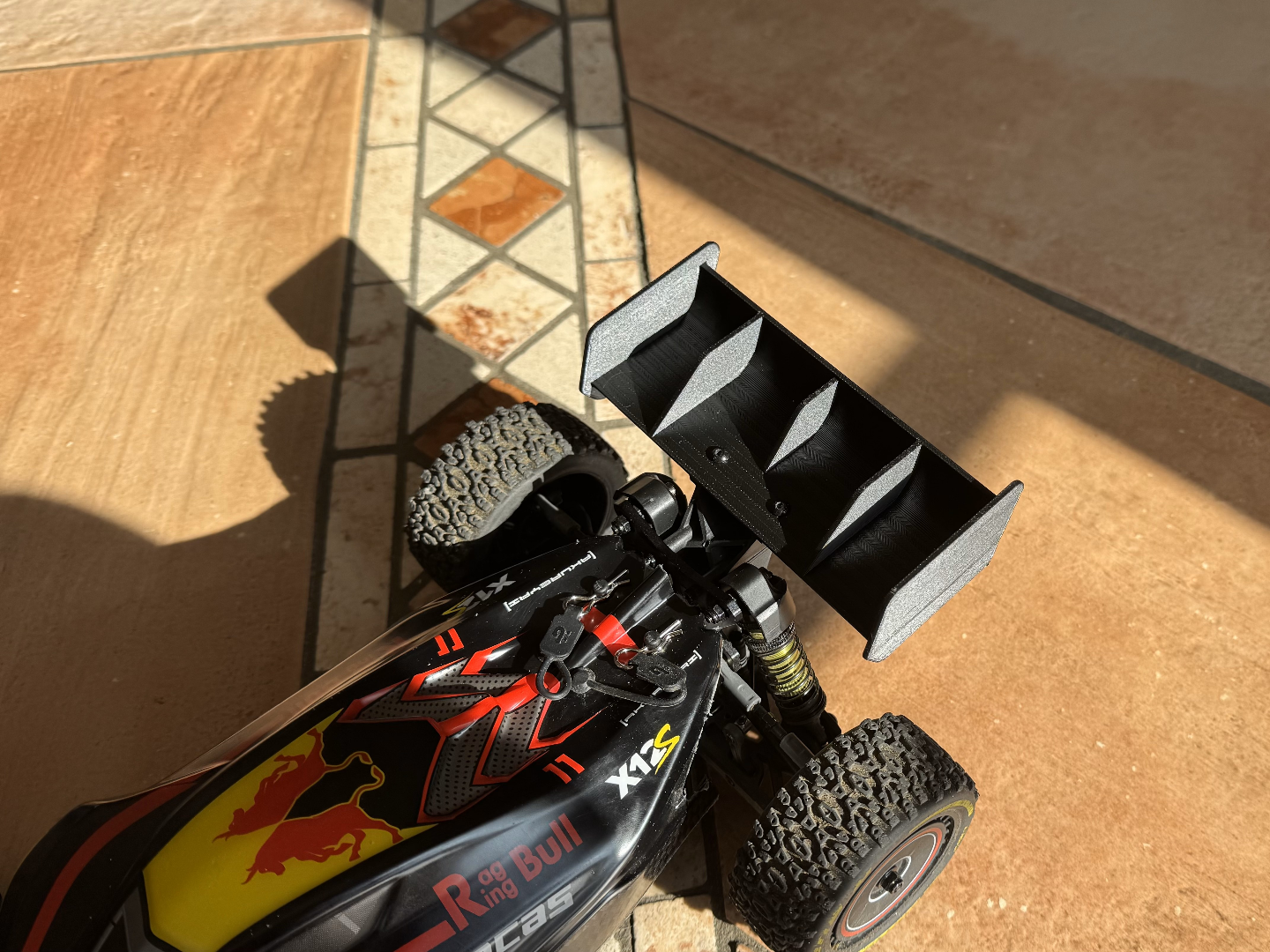

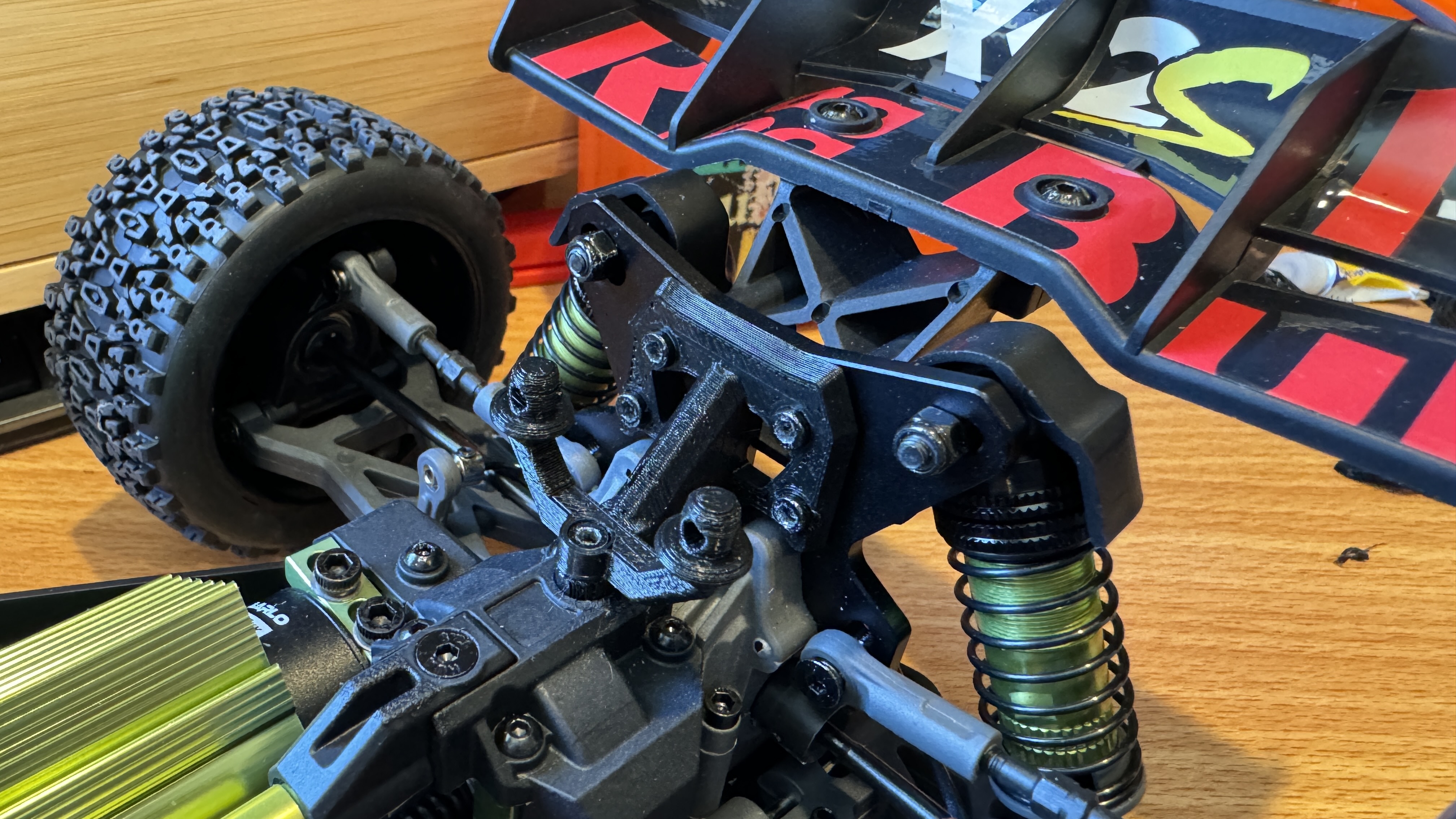

This is a collection of X12S Parts and FPV mounts I created. The skid plates and mud flaps attach using 3M industrial double sided tape and the FPV components mount using either screws into existing mounting points or zip ties/lacing tape. The camera mount uses the XT60 mounting point and hardware and is designed to house a Foxeer razor or equivalent camera. The VTX mount is designed for the Zeus Pro 1600 VTX and has a cut out for a thermal pad to conduct heat to the aluminum stiffening tube. I will be adding a 25mm fan to the VTX because it heats up to 170F in 10minutes when stationary. The shock tower protector clips on just with friction. The wings mount using the single screw in the front bumper. There are several models of wings depending on how much understeer you are trying to tune out. The front wing angle can be adjusted by adding tape or foam between the wing and bumper. The wings and diffusor function as sacrificial bumpers in the event of a crash so they are made intentionally weaker than the surrounding components to dissipate an impact. I will be adding to this collection so check back soon.
