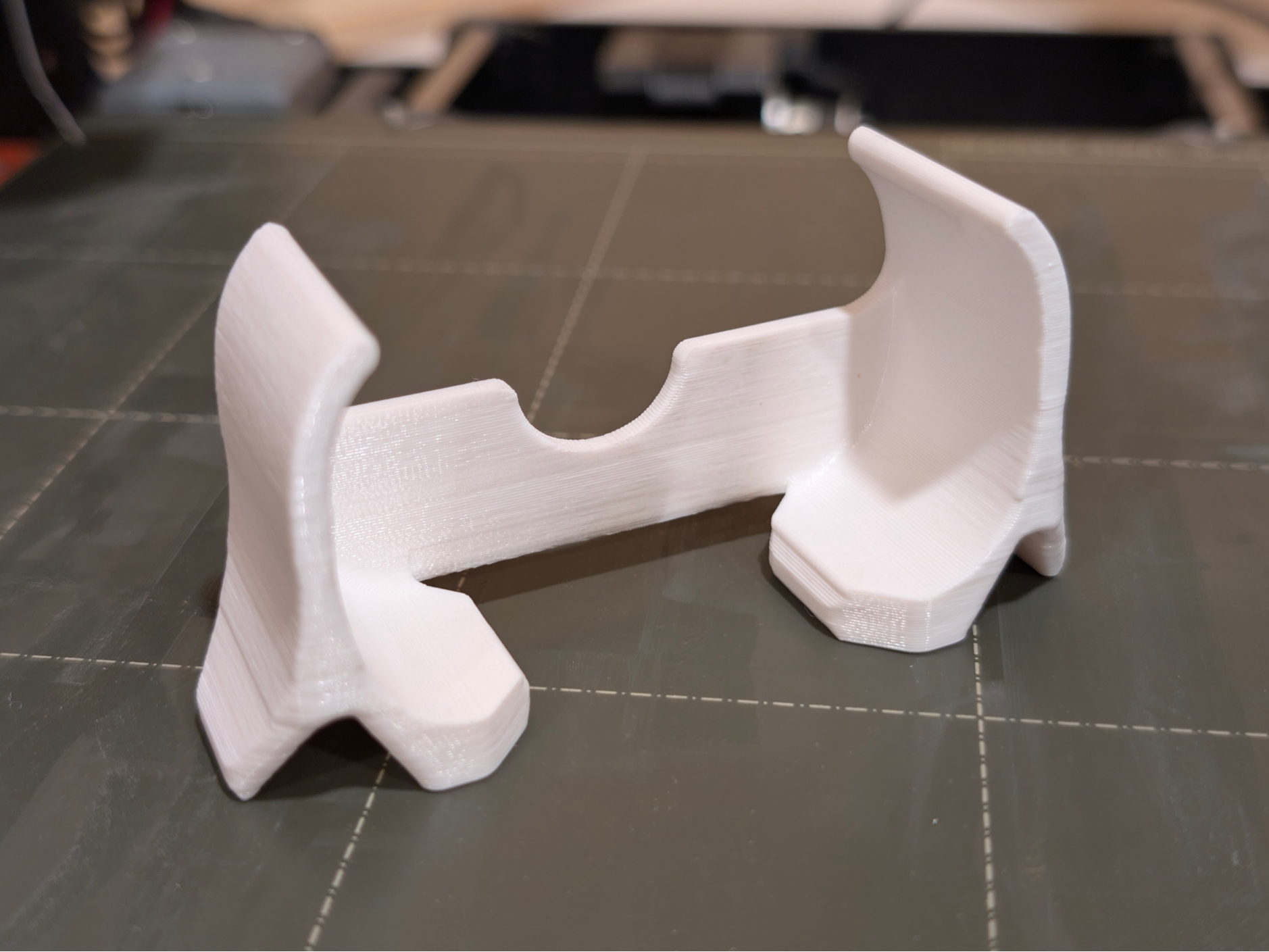

Kasa HS300 OpenGrid/Underware Mounting Bracket

by T99

An openGrid compatible Underware mounting bracket for a Kasa/TP-Link HS300 power strip. - The bracket is designed to fit on both ends of the power strip, and thus you will need to print two of them to mount a single power strip. - Using this bracket to mount the power strip to an openGrid board takes up a 3u x 14u space. - A small amount of support material will likely be needed below the bridged wall on the clip, but (for most printers) no support material should be needed underneath of the arches of each foot of the bracket (the portion that locks into the openGrid plate). - I believe this should also be compatible with the following power strips as well, but I will try to update this description as I am able to verify: - Kasa/TP-Link KP303 (may need some minor modification to account for the different length of the power strip) - Kasa/TP-Link Tapo P316M **IMPORTANT NOTE** The bracket was designed to very tightly fit the power strip, and as such, care should be taken when pushing the power strip into the mounting brackets once they are installed onto an openGrid plate. Pushing the power strip _straight_ into the bracket will likely result in breaking the two retaining clips on the face of the bracket. Instead, tilt the power strip along it's long axis and insert half of it into each of the two brackets, and then carefully push the other half in until the clips are able to fully grab it.
