8x8 LED Flag WS2812B / SimHub

by DarkDindon

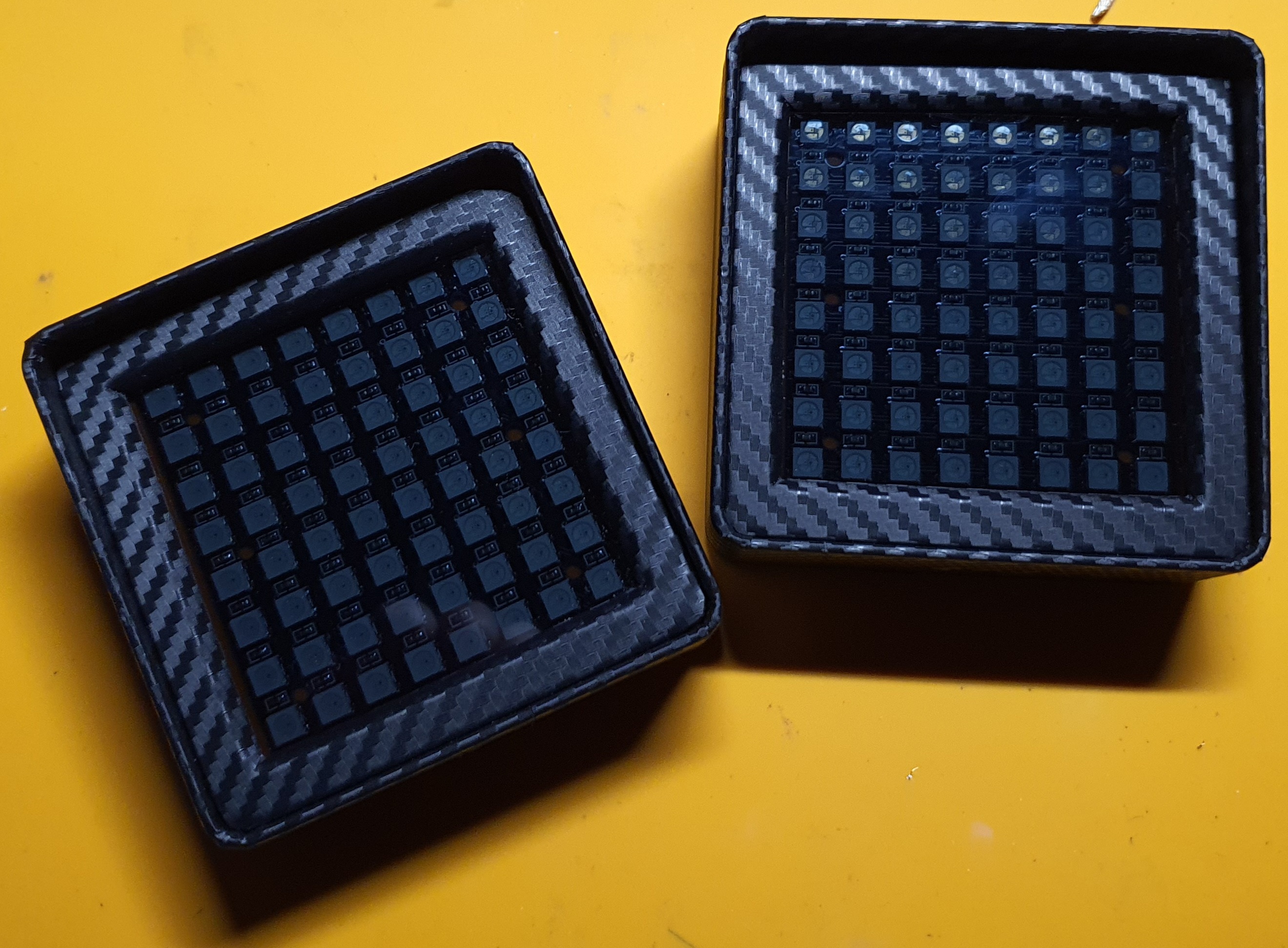

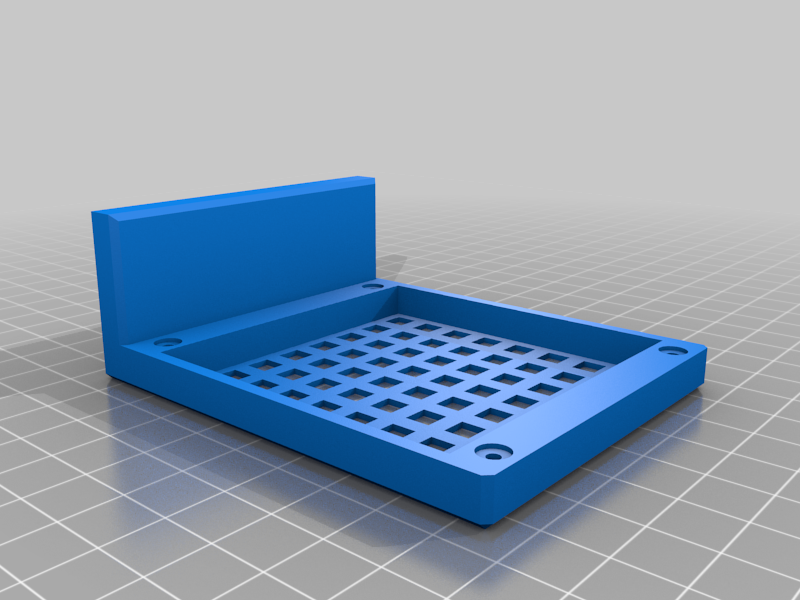

Flag indicator, SafetyCar indicator, current gear Indicator, Car spotter, whatever. Integrate it into your setup or use with stand Note that to use my LED Flag you will need SimHub **What you need:** 8x8 Matrix WS2812B Plexiglass 3mm You will need a piece of 6.4x6.5cm. I recommend the cutting technique with a cutter (be careful) or hacksaw I chose black but you are obviously free to take something else An Arduino I chose a Nano V3 once again free to you to take something else 4x10mm M3 Sccrew/Nuts + 2x8mm M3 Sccrew/Nuts + 1x16 M4 Sccrew/Nuts (Be careful not to tighten this screw too hard) 1 Soldering iron + tin + wire (I use 22AWG ) DIN -> Arduino D6 GND -> Arduino GND VCC -> Arduino 5V https://github.com/SHWotever/SimHub/wiki/Arduino-RGB-Matrix#ws2812b-matrix
