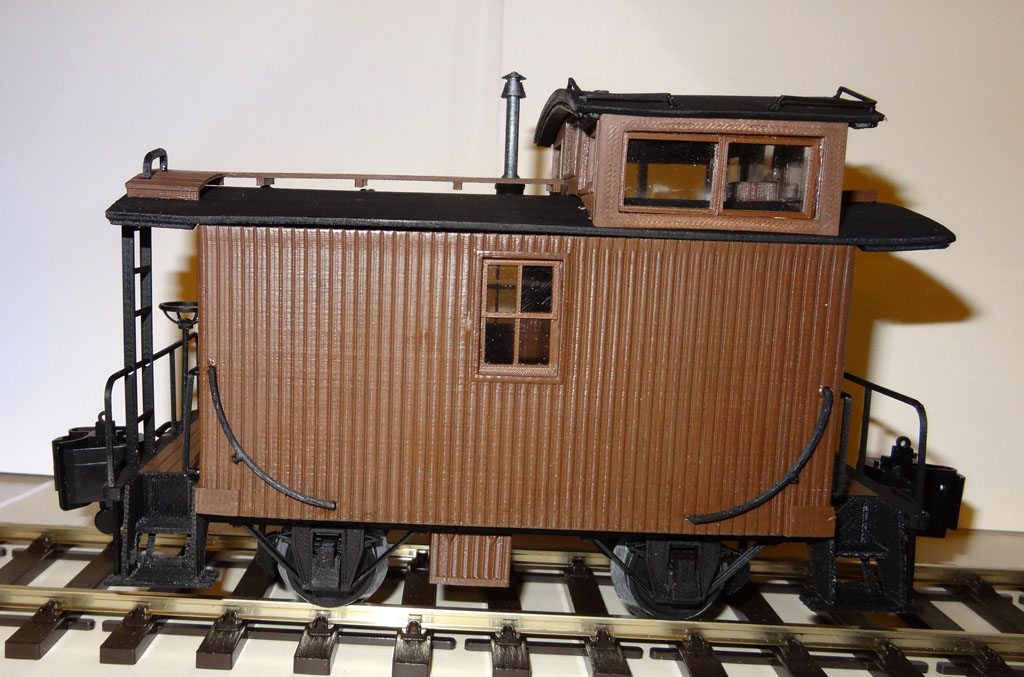

US Bobber Caboose Scale 1/32 - OpenRailway

by Raby

This is a scale (1/32) model of a Bobber Caboose for a garden railway (runs on 45mm tracks). Cabooses are manned North American railroad cars coupled at the end of a freight train. Early cabooses were named "Way cars". This model with a cupola began its service in the late 1890s. The 2 axles Bobber caboose was known for the uneven ride its lack of trucks created. The model uses 3 mm wheel axles and a LGB-like coupler holder so it can accept either LGB standard couplers or knuckle couplers. Notes: I've printed everything in ABS (easier to sand/file and to glue) on a heated bed (100°) coated with a 3D adhesive spray. The stairs need support and must be printed with 0.3 mm wall thickness. The cupola is a bit tricky to print as there are big overhangs. I've included a file with support but the result is uneven and the file without support can give better results, depending on your printer. All the small pieces are printed with a 0.1mm layer thickness and the bigger ones with 0.2 mm. The roofs are printed vertically and are provided with an easily removable brim (I've added a version of the bigger one without brim for those who can't print it vertically). Post-printing : Bobber cabooses where usually painted a brownish red but also bright red or yellow. This model existed with or without a central window on the cupola. Both versions are available in the STL files. First assemble the wheels, outer axles and axles (better use metal shafts 3mm in diameter if you want your model rolling). Insert the axle holders into the slots at the bottom of the cabin by tilting them outwards (the hinges of the tool box must be on the side opposite to the cupola). Insert the wheels assembly and then screw the toolbox to the bottom of the cabin with a 2x10 (or 2x12) mm screw. When the wheels are well adjusted, you can glue the axle holder in place to get a better rigidity. Glue the four brakes in the corresponding holes. Screw the coupler holders in place with two 2.5 mm screws on each side
