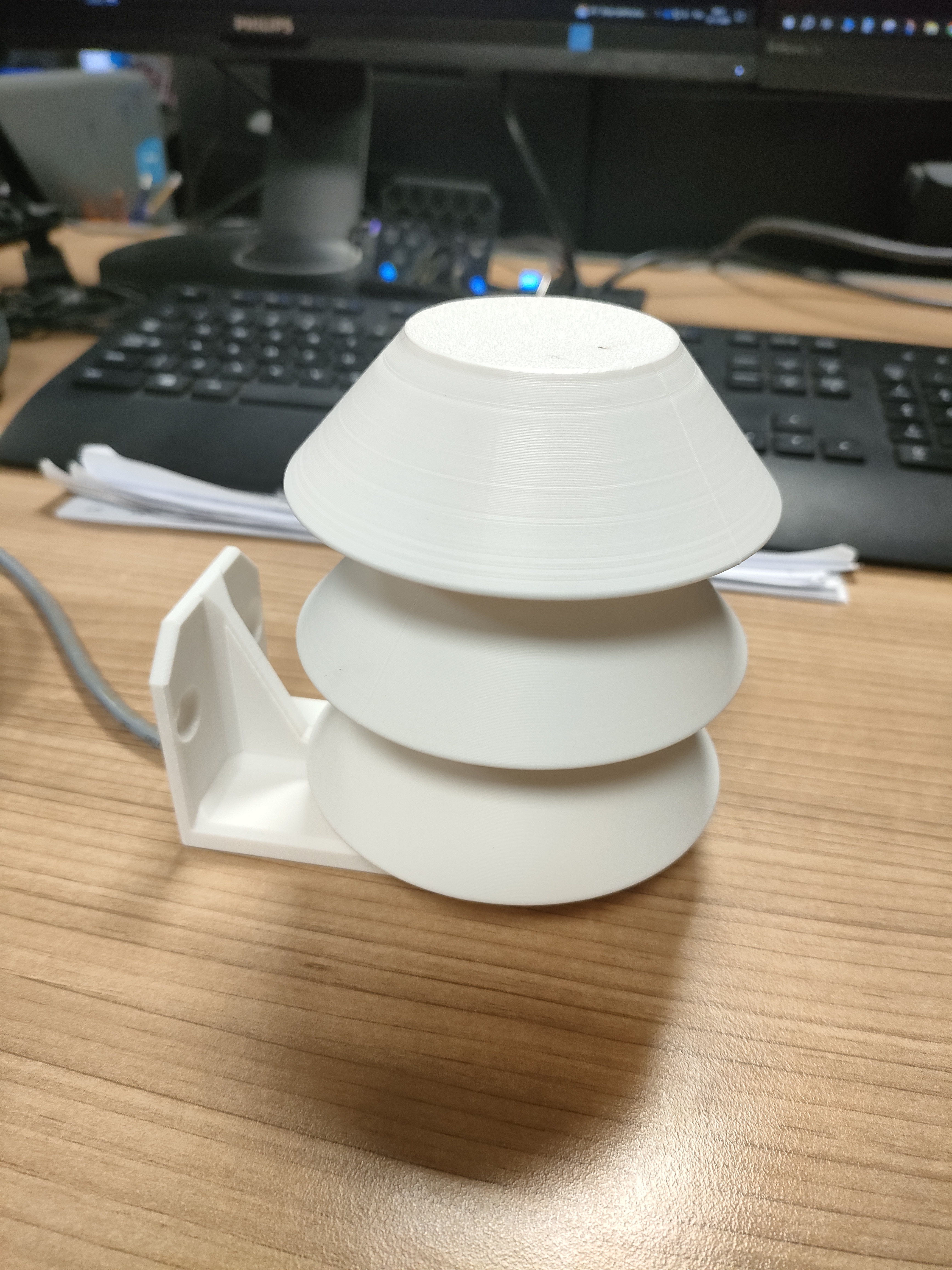

Stevenson screen for the DS18B20 temperature sensor

by Anatolii_Korzh

Sensor case for outdoor installation and air temperature measurement. Easy to assemble. Time required - 10 minutes. For the assembly you need: 20 self-tapping screws 3.0x16 mm 4 self-tapping screws 3,0х6 mm 4 self-tapping screws 4,0x16 mm You can find them at any construction store. Possibility of installing other types of sensors. Including the PCBs. For this, changes the design of the fixing element (the smallest and fastest printing). Adjustable height. Possibility to add or remove several covers. Easy mounting. Enclosure can be mounted on any bracket. Just use two screws to make sure it stays in place. Robustness. Covers are 2 mm thick.
