Moxon Antenna Frame 868Mhz

by zviangi

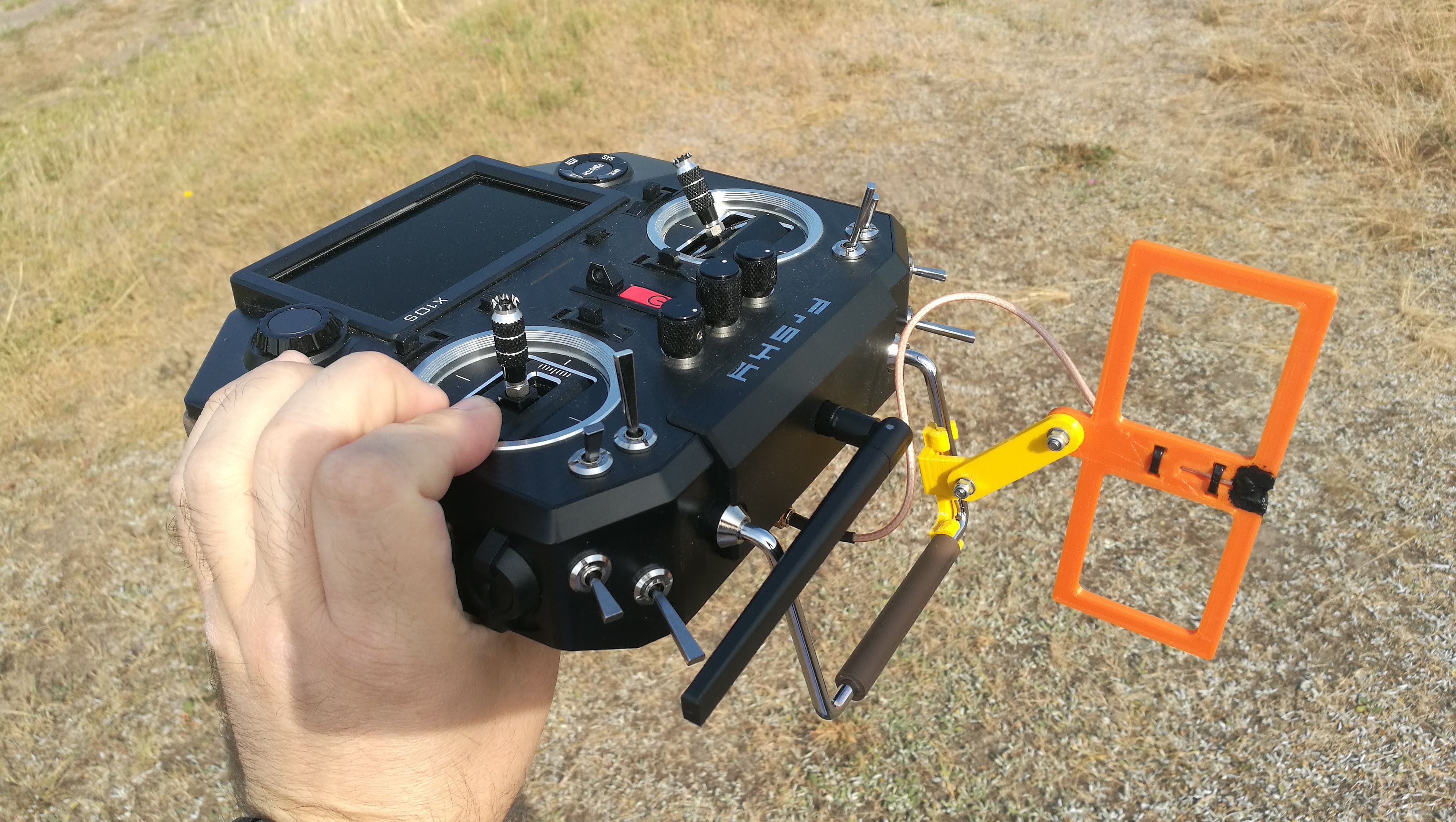

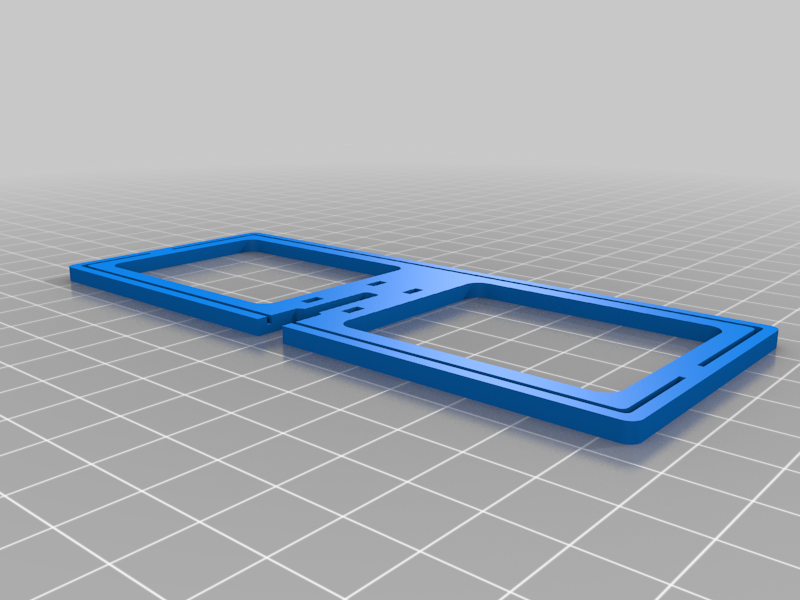

This is a design of a plastic frame to make a Moxon antenna for 868Mhz (EU) LoRa. Dimensions are calculated using MoxGen by AC6LA based on algorithm developed by L. B. Cebik, W4RNL After printing this, you need 2.5 mm2 (1.8mm diameter) striped solid copper wire, plastic zip ties and piece of a RG316 coax (or any 50ohm coax, that will fit in the groove)
