Jellyfish Lamp RGB

by TriDee-Design

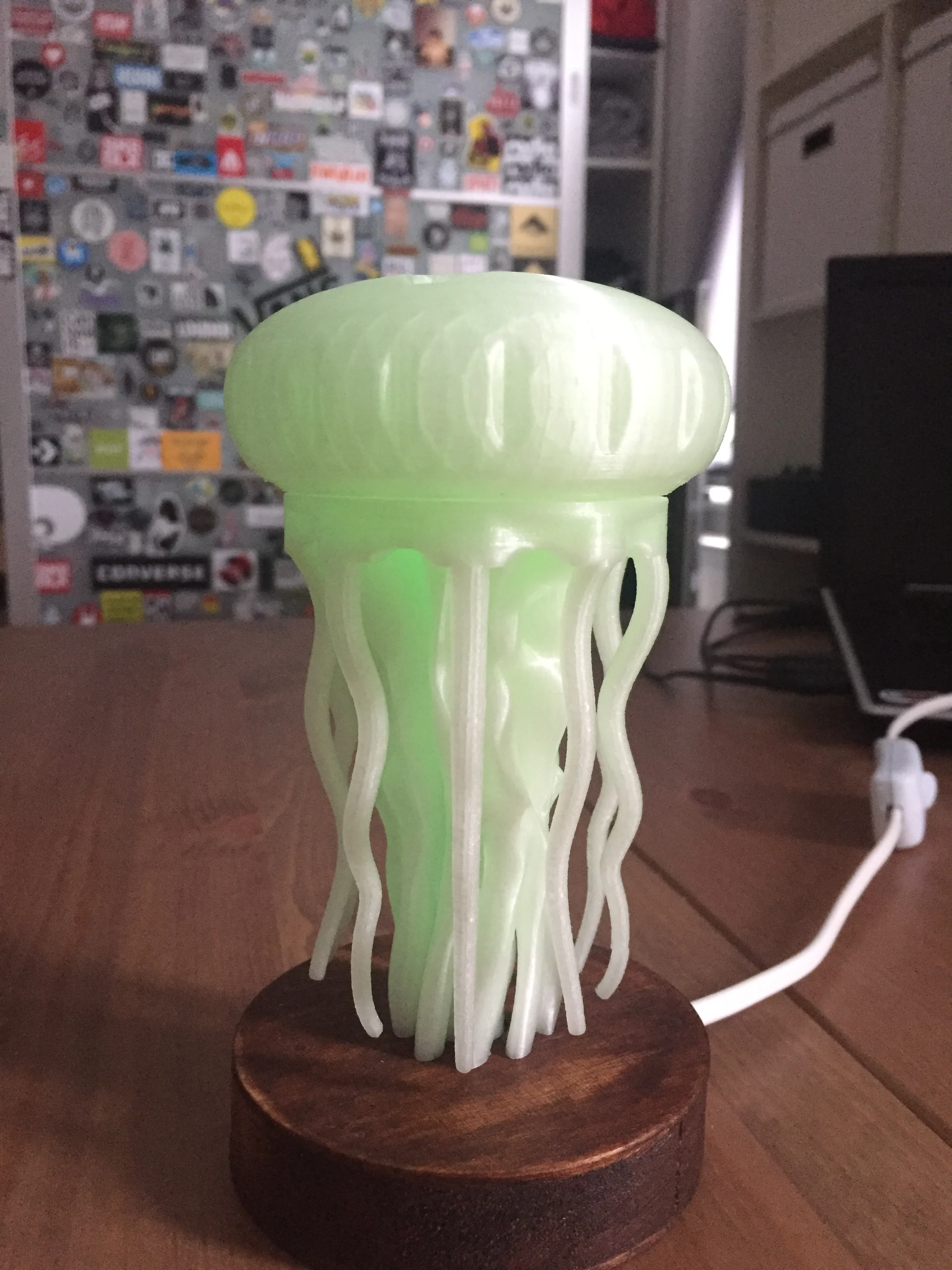

#BEACHXCULTS This a Jellyfish lamp that has moving tentacles with customizable LED light for surreal effect. The design is a combination of a motor and moving gear mechanism to create this beautiful live like jellyfish (no programing needed). The project requires wiring / soldering work so i do recommend asking someone with experience to help. Use an ESP32 board and WS2812B LED lights (follow the wiring diagram document) and control it via WLED app (No programming hasle). Note: - I used SLA resin printing to print the tentacles, but if you don't own and Resin printer you can print them on FDM with clear transparent filament on SLOWER speeds and HIGHER cooling than usual to have good result. - Apply Lithium grease on the gears teeth and inside the gears to reduce friction and noise. - Wear gloves when you apply the grease or glue. Before you print: -print plate should be cleaned with soapy water or IPA. -machine should be properly maintained and lubricated. -machine should be pre calibrated, Auto bed level, and pressure advance optimized. -Filament Flow rate should calibrated. -Filament temperature should be optimized. -Slow the speeds if you need cleaner quality.
