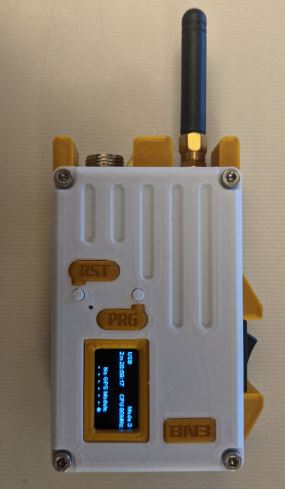

Heltec32 Meshtastic Case

by TGstudios

Case for a Heltec LORA32 V2 development board. meshtastic.org Parts: 4x M3x25 socket head cap screw 4x M3 Nut 1x 1/4"-20 Nut 1x Heltec Lora32 V2 development board 1x small lipo battery 1x GX12 Aircraft connector 1x 90 degree micro USB Cable 1x switch https://www.amazon.ca/gp/product/B07Y895DP3 https://www.amazon.ca/gp/product/B078Y2Z8NK https://www.amazon.ca/gp/product/B07MR3CQCC Wiring: Cut the 90 degree USB cable roughly 2 inches from the tip. Next Solder each of the 4 coloured wires to GX12 connector. Make sure you MATCH the wire colours to the same pin numbers on the male and female GX12 connector. This is just a normal usb cable with a special/secure connector between each end. The switch on the side of the device is just an in-line switch to physically disconnect the battery from the board.
