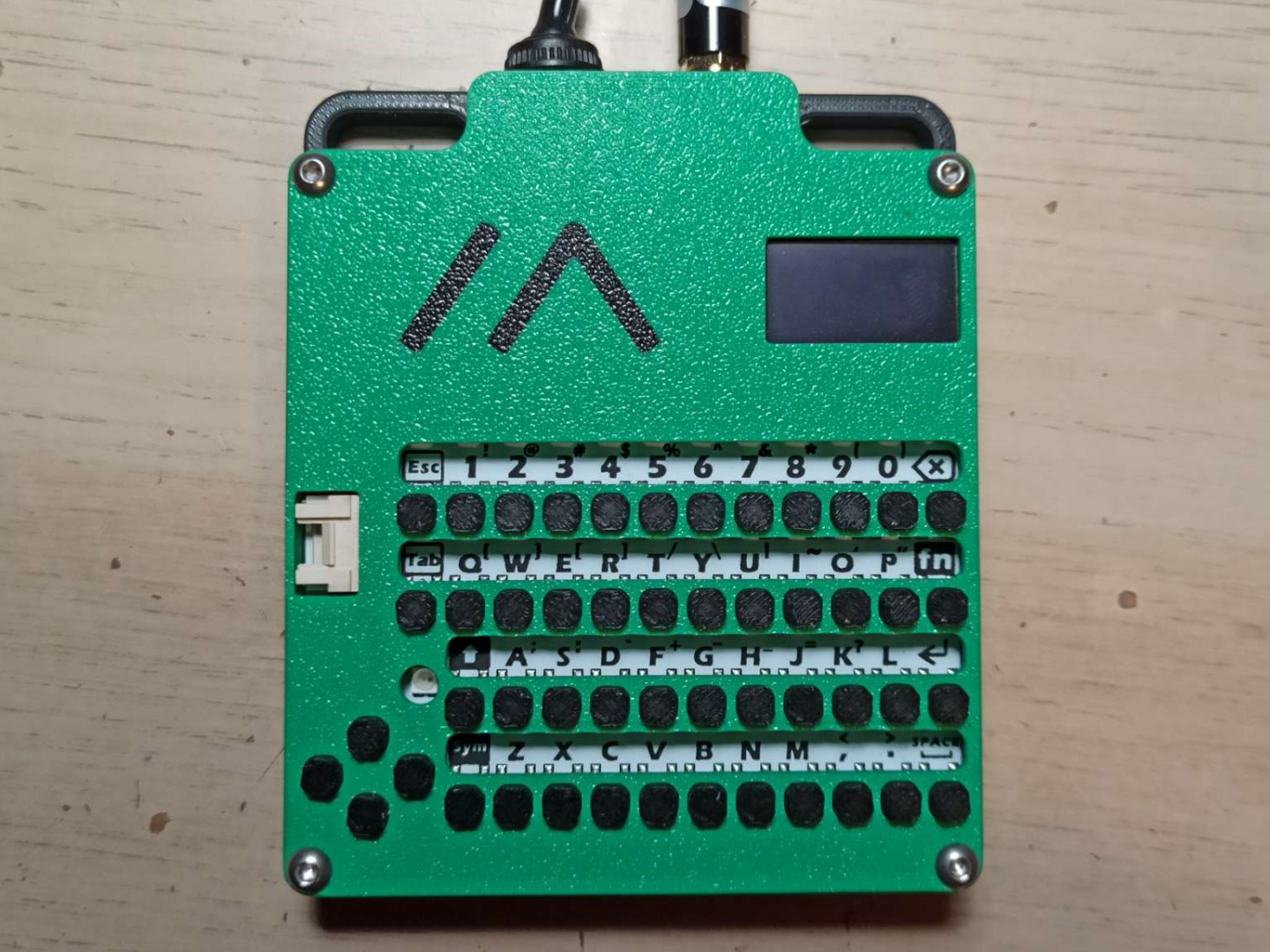

FakeDeck (A FakeTek standalone Meshtastic device)

by mosstrike1

This is a standalone device with very low power consumtion compatible with FakeTec board. Easy to print and build. Enjoy it! I tested to send messages and traceroute between 13.5km with no problems. Parts needed: - FakeTec [link](https://github.com/gargomoma/fakeTec_pcb) soldered with the pin header. - SSD1306 cheap model in ali-express. (Yellow + blue) one is recommended for Meshtastic GUI. - Good antenna - Sma to ipex: Lenght is not crucial because case is designed to fit long cables but i recommend very short ones, in the photos you can see the distance (less than 5cm) - 4x 16mm M3 screws - 4x M3 heated inserts - Keyboard KB M5Stack - For buzzer you will need a buzzer (i used a active one) and a transistor and few resistor. Do not connect direcctly to a GPIO! - Also there is space behind the Keyboard KB to a vibrator module (I have tested it and is ok) - Battery: can be as big as the Keyboard KB. I use a old nokia battery. (1000mah) - Switch: I used a typical Aliexpress one. Two positions.
