2020 V-slot reverse bowden top mount bracket (PC4-M6 and PC4-M10 versions)

by willywidget

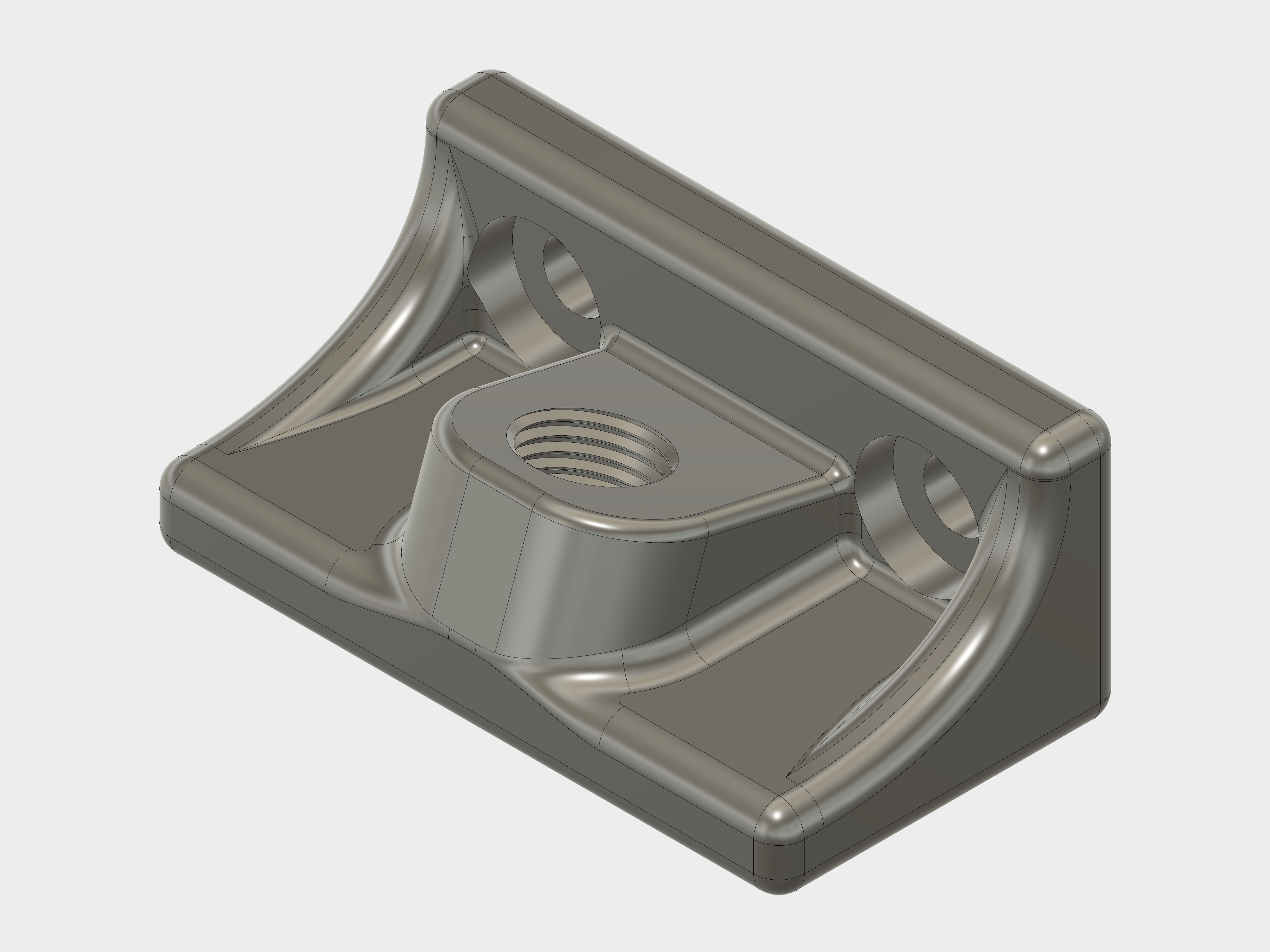

This is a top mounted reverse bowden bracket designed for 2020 v-slot. I've updated it with two versions that now support PC4-M10 and PC4-M6 pneumatic fittings. In my printer enclosure I have my filament mounted up and behind the printer. This works great by flipping my spools to go under rather than over. I designed this for my Prusa Mk3 Full Bear upgrade. It should work with most v-slot printer setups. To complete the adapter you will need the following: 1 x PC4-M10 or PC4-M6 Pneumatic Fitting 1 x Drop-In M5 T Nut for 20mm T-Slot/V-Slot 1 x M5x12 socket head cap screw To complete the reverse bowden setup for a Prusa MK3 Bear, you will need the following: 1 x PC4-M10 Pneumatic Fitting 1 x Drop-In M5 T Nut for 20mm T-Slot/V-Slot 1 x M5x12 socket head cap screw 1 x reverse bowden filament sensor cover (uses original M3 screws) (https://www.thingiverse.com/thing:3285315) 1 x PTFE tubing 2mm ID, 4mm OD approximately 360mm in length If you are interested in the Prusa Bear upgrade, check it out here https://www.thingiverse.com/thing:2808408.
